Surgical Robotic Technology for Developing an Endonasal Endoscopic Transsphenoidal Surgery (EETS) Robotic System

1.1. New and Upcoming Technological Advances in the Medical Field

The field of medical imaging technology is growing fast, and the enormity of changes in the area is hard to fathom. Mobile application based medical imaging and Internet of Things (IoT) is blooming in the medical imaging arena and is routinely used cases like 3D viewing, and Picture Archiving and Communication System (PACS) connectivity [1, 2]. Recently, big data analytics has caught attention in the medical imaging field for its exceptional contribution to the care continuum and for the maintenance of Electronic Health Record (EHR) data [3]. The personalized medicine got modernized only after the 1950s. With the introduction of first automated and programmable computational machines (Fig. 1), neurosurgery field progressed rapidly and resulted in the development of modern computers.

With the advancement of database based data collection and introduction of the modern computer, large data set management during clinical trial just got better. A comparison between conventional paper-based data collection and computer interface data collection is outlined (Fig. 2).

Development and utilization of robots in medical imaging is another potential area of technologic growth [4]. Use of Robots in the neurosurgery field is not a new concept. However, they are less commonly used compared to the extent they are used in other medical areas. When a surgeon reaches the human limits of precision of motor function, robotic devices help in stabilizing physiologic tremor and minimize the invasiveness of a surgical procedure.

1.2. Medical Robotics

Crucial advances in computer technology are also potentially providing the opportunity for minimally invasive procedures. Based on the development of the rapidly growing computer technology platform, there are feasibilities to generate several accurate and precise neurosurgical procedures under experienced neurosurgeons. However, human error is still alarming in this field. Additionally, the quality improvements (QI) in engineering industrial applications of robotics have enthused. These QI applications not only work for the present technology but can also be applied in the minimally invasive neurosurgical area. The advantages of the robotic applications over the human works include high precision, high accuracy, reliability, and repetition of the process, no exhaustion and no hand trembling. Practicing, working in surgery and ergonomics studies demonstrated that muscle fatigue occurs due to the long-time procedures and the position of surgical instruments [5-8]. So, the drawbacks of surgery by a human being include the possibility of inaccuracy and mismanagement. The visualization, manipulation, posture, mental and physical workload and environment are the factors that play a key role in restricting the neurosurgeons’ capabilities [8]. Several robotic systems were developed and exercised in neurosurgery regarding a patient’s safety with ethical concerns. The neurosurgical robots have been invented for clinical practice while some others still have been in the research. Even though robotic surgery is getting more attention in the last decades, there are still a few limitations associated with the procedure. Not all minimally invasive procedures can be reached out with a robot. Also, not all medical cases are appropriate for robotic surgery. The traditional endoscopic or open surgery is still the preferred option in many surgical cases [9]. Some of the more common procedures that use robotic surgical technique include (a) Cardiovascular surgery, (b) Head and neck surgery, (c) Gynaecologic surgery, (d) Partial knee replacement surgery, (e) Abdominal, colon and rectal surgery, (f) Urologic surgery and more recently (g) Neurosurgery [9].

1.3. Endoscopic Endonasal Transsphenoid Technique in Neurosurgery

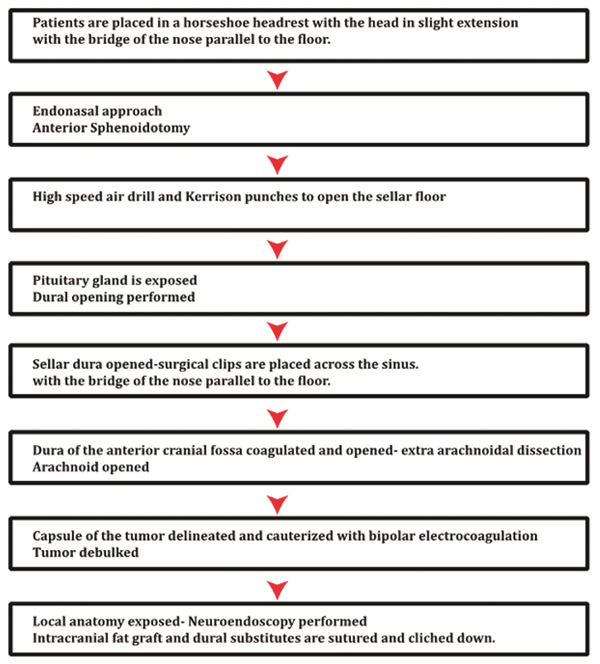

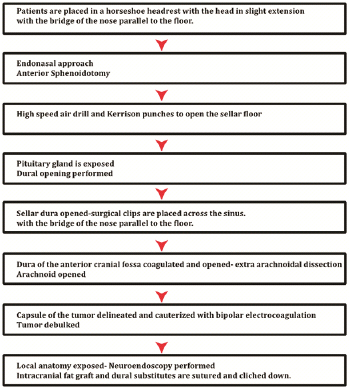

While focusing on the several different techniques in neurosurgery that offer “minimal invasion” during the surgical procedure, Endoscopic Endonasal Transphenoid (EET) technique is widely used by neurosurgeons and otolaryngologists [10]. This method provides minimally invasive access to the anterior cranial base and substitute’s endoscopic technology in resecting part or the entire tumor in the sellar region. Like any other endoscopic technique, EET comes with its pros and cons. The scope positioned within the nostril or sphenoid sinus, blood and other bodily fluids easily clouds the lens and interferes with the surgical procedure. Also, the magnification factor and optical quality of the microscope are slightly superior to that of endoscopes, even though the difference is nominal in the majority of procedures and more than compensated for the improved degree of visualization and dexterity the endoscope provided the surgeon. Also, though the endoscopy is two-dimensional and most neurosurgeons are familiar with the typical stereoscopic vision of the microscopes, the EET is rapidly adopted by the surgeons [11]. Irrespective of the valid limitations of endoscopy (not a cost-effective technology, longer operative time, number of surgeons required is more than conventional microscopy approach), it compensates by the multitude of advantages that offers during the transsphenoidal surgery [11]. However, there is still an active debate going on the field if the endoscopic surgery should be the preferred mode of operation or not. A general EET procedure is outlined (Fig. 3).

2.1. History of Surgical Robots

The very first US FDA approved robotic system since 1994 is Automated Endoscopic System for Optimal Positioning (AESOP) from Computer Motion Inc (CMI). There was some evidence that AESOP had some benefit, but some limitations were reported [12, 13]. CMI (Computer Motion Inc.) and SRI (Stanford Research Institute Inter- national) were the two first pioneers in the surgical robot that later in 2004 merged, and the da Vinci system was proposed. Its unique features like 3- dimensional visualization, a stable camera, and operating platform, 7 degrees of freedom articulating instruments, comfortable ergonomics, and trembling- free movements, the clinical utilization took the product to the next level [14-16]. Because the advantages mentioned above, the da Vinci systems received mostly outstanding positive reviews [17]. However, on its flip side, since the surgical robot is mechanical based, there are some disadvantages associated with it. Da Vinci system lacks feedback sensation or haptic technology and also it is bulky. Because of its bulkiness and lack of haptics system, it might possibly be harmful for the patient under visualization during the surgical procedure [18-22]. Programmable Universal Machine for Assembly or PUMA; (Advanced Research Robotics, Oxford, CT) was initially designed for holding and manipulating biopsy tools since 1988 [23-25]. PUMA is the first robot in neurosurgery that was evident [26, 27]. In 1989, Benabid et al. reported the experiment with an early precursor to the robot named NeuroMate (Integrated Surgical Systems, Sacramento, CA) [28, 29]. Concerning a real-time monitoring issue with the image-guided system, Minerva was developed in 1993 from the University of Lausanne, Lausanne, Switzerland. It comprised of a robotic arm placing within a Computed Tomography scanner (CT). The robot allows neurosurgeons to monitor and adjust during the operation in real-time under the proper clinical decision. Subsequently, the US National Aeronautics and Space Administration (NASA; Washington, DC) developed the Robot-Assisted Microsurgery System (RAMS, NASA; Washington, DC) in 1997. This robot could provide a dexterous platform to perform surgery with high precision. In 1999, the SteadyHand was developed at Johns Hopkins University (Baltimore, MD) to be the surgical tool manipulation. The SteadyHand is another dexterity-enhancement system. It was designed to reduce shaking to augment microsurgery. NeuRobot (Shin-shu University School of Medicine, Matsumoto, Japan) was subsequently used to remove a recurrent or atypical meningioma. Table 1 shows an overview of the evolution of surgical robots over time.

2.2. The Evolution of Robot Assisted Neurosurgery

Robots are also used in neurosurgery, as they are the right tools for integrating computer technology, medical imaging, and engineering to accomplish the most complicated tasks in the brain and spinal procedures. They are also used during neurosurgery to apply the numerical image explosion and multimodality medical imaging. As outlined in Table 1, few other surgical robotic systems are heavily used in the neurosurgery and related spinal applications. The FDA approved Renaissance robot (Mazor Robotics, Israel) is used in brain and spinal surgery. This robot localizes the tool positioning and implant placement. It includes sophisticated software for image guidance, which is ideal for delicate brain and spinal surgery with high accuracy and precision. ROSAR (MEDTECH, France) is another type of robot used for brain and spinal surgery. This particular robot is bulky and comes with an O-ArmR. SurgiScope stereotactic system (Stockholm, Sweden) and MKM microscope system (Carl Zeiss Inc, Germany) are the examples of robots that are integrated within current neurosurgical tools such as the microscope. Cyberknife (Accuray Inc., CA, USA) is also a well-known surgical robot that performs the tumor irradiation not only for the brain tumor but also for other parts of the body with motion tracking [30]. The Medrobotics FlexR Robotic System that was introduced in 1940 is a robotic-assisted transoral surgery tool [31]. Mazor X and Excelsius Surgical system navigate and facilitate access and position to both spine and brain surgery. A smart arm-support robot called iArmSR is another robot that supports neurosurgeon’s forearm to prevent from hand trembling and alleviate fatigue during the surgical procedure [32].

2.3. Design and Development of Neurosurgical Robot-Assisted EET

The overall goal of this study is to develop the principle of neurosurgical robot-assisted EET to originate the original ideas for the robotic neurosurgical system for EET approach design. This robot would be clinically available with the integrated state of the art technology, e.g., integrated medical imaging (mainly 3D imaging) [45], the computer software and the robot to perform the complete procedure focusing on the transsphenoidal approach. However, Neurosurgeons will still participate in the operation and monitor the whole process while making a critical decision along the entire method. The robot will carry out only at the first stage of the EET approach operation under programmable organization with safety control mode. The tumor or lesion will be taken care with the bleeding control mechanism. After the process is completed, automatically the robot will leave after neurosurgeon decides to finish the operation. The surgical wound will be closed or packed by the assistance. According to this, the robot will achieve the accuracy and precision of navigation system with warranty by the virtual fixture.

3.1. Pre-operative Phase of the Study Design Approach

One of the critical approaches while developing a robotic surgery is to evaluate individual steps in a particular type of surgery. To address this, Gildenberg proposed a scale popularly known as “the Gildenberg Technology Scale” to classify the efficacy of the surgical robot (Table 2). Four phases include as the following:

Several criteria need to be satisfied to achieve all the phases of the Gildenberg technology. They are as follows.

(a) More precise, accurate and faster neurosurgical procedures than a neurosurgeon can perform as usual.

(b) Under the image guidance, the robot needs to be in direct supervision compared to the manual techniques.

(c) The robot needs to be under the direct control of the neurosurgeon.

(d) The robot should be able to execute the procedure that must be operated under the neurosurgeon supervision for the patient safety concern [31, 32].

3.2. EETS Pathway Guidance Surgical Simulator

Also, as a part of pre-operative study design, a robot-assisted EET approach is sought to reach the sellar region via transsphenoidal sinus that is relevant to the Gildenberg technology scale criteria as follows

(a) More precise, accurate and faster neurosurgical procedures than a neurosurgeon can perform as usual.

(b) Compared to the manual technique, this approach is direct, and a neurosurgeon can directly control the robotic functions.

(c) The robot can move and stop at the floor of sellar region precisely under new paradigm navigation and allows the neurosurgeon to make a decision.

Following additional measures must be considered while designing the study.

(a) The EET procedure must be performed under the well-trained neuro- surgeon supervision for the patient safety concern.

(b) Neurosurgeons must have the ability to create an intuitive image of the 3D neurosurgical anatomic image, irrespective of the usage of the endoscope. Previously, several reviews on the neurosurgical robots have been published, but the evidence to support the EET approach robot system that is available to operate a master model is missing [30]. In this current study, we have intended to focus on the tenets of neurosurgical robot-assisted EET approach that are described in detail to originate the original ideas for the robotic neurosurgical system for EET approach design. Seven principles are concluded as followings.

3.3. Seven Principles of the Neurosurgical Robot-Assisted EET

(1) The patient safety is paramount.

(2) The workspace determination in EET approach

(3) The safest pathway with the virtual fixture.

(4) The fixed patient position for the robotic-assisted surgery.

(5) The target and trajectory determination.

(6) Mode of action.

(7) The robotic platform.

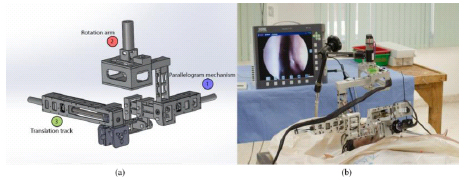

Concerning these tenets, the ideal EET approach neurosurgical robotic design is obtained (Fig. 4).

The crucial components of the neurosurgical robotic system must comprise of the controller, interface system, and the robot. All the elements must be integrated and appointed under the navigation system or the direct endoscopic visualization. Since the control system is the heart of the robotic- assisted surgery, a high degree of precision is required regarding the delicate and eloquent neuroanatomical structure. This allows neurosurgeons to localize their desired three-dimensional position precisely and to coordinate the patient’s brain both during the preoperational and the peri-operational phase. A high degree of accuracy is needed for the repetitive positioning of the dis-sectors and the surgical tools. The accuracy and precision of spatial and the real-time approach are the central concepts of the control system. Further, the steady motion of the robot establishes the reliability of the system. By the computerization, the most effective trajectory of the robot to reach the anticipated position and coordination is planned preoperatively. The navigation system creates its path planning. During this step, a pre-designed algorithm is used to determine the preferred and safety workspace of the robot by the neurosurgeon preoperatively. The workspace is the area where the neurosurgeon operates safely. As per the clinical anatomy with neurosurgeons’ knowledge, the workspace is designed. As a rule of thumb, the workspace is created after conducting a simulation or cadaveric study under the image guidance techniques. In a typical scenario three different types of the workspace are defined (a). Available workspace: A workspace where a neurosurgeon can access the intranasal anatomical structures (among the nostrils to the skull base area), (b) Target based workspace: where the neurosurgeon operates and aims to approach the target. This workspace is different from the available workspace that at the end of the trajectory-to-target workspace is a pinpoint area at the goal rather than the end of the convenient workspace, and (c) The universal workspace: the entire area of the space for the robot installation.

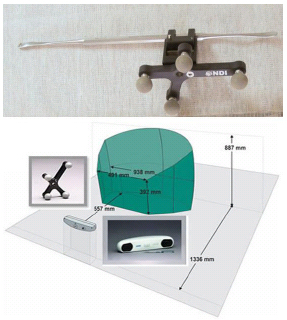

An anatomical configuration study is very much needed. Current knowledge regarding the anatomical structure relevant to the EET approach is mainly based on post-mortem or imaging studies [46, 47]. Among the imaging techniques, Computerized Tomography (CT) has the potential to examine the basal skull and intranasal structures in several aspects, particularly for preoperative evaluation of the bony parts [48, 49]. Additionally, CT imaging provides greater accuracy and safety for studying skull base anatomy to identify and classify the EET approach workspace [50-52].

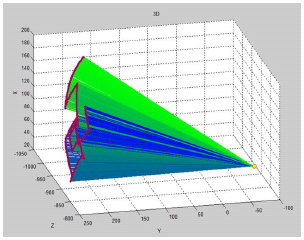

It is important to note that, before the operation, the viral fixture is created which in principle helps to limit the desired safety workspace preoperatively. In return, this feature guarantees the patient safety during the operation by the robot, which is planned and simulated by the neurosurgeons for preoperative determination, particularly for the patient safety. The robotic platform systems are crucial in the robotic system for EET approach. The parallel platform (a type of the robotic platform) is the superior compared to the serial link robotic arm. Because of stiffness, accuracy and high-speed operation, the parallel platform is recommended to be the primary underlying design for this EET approach neurosurgical robot.

It is also crucial to assign a mode of action while designing a neurosurgical robot. The tele-presence mode is required [53-56], as the robot needs to be in a standalone version under control by a neurosurgeon. The independent method is essential as the neurosurgeon is able to operate the patient remotely using specialized tools. Among the separate action and at the desired position and coordination, the neurosurgeon will take care of the entire procedure to accomplish the operation.

The overall goal is to design a robot that can execute a minimally invasive trans-sphenoidal approach. However, it is also essential to keep the technical feasibility in mind that may or may not result in the complete desired robotic model. During the Preoperative phase, at the first step, the desired coordination and position of sellar region is achieved under the navigation system by a neurosurgeon. This helps the robotic software system to calculate the distance and trajectory-to-target workspace within the brain whether to reach the sellar turcica or around the anterior cranial fossa. Next, a virtual fixture is created, which limit the safety boundary for the neurosurgeon. Nostril is identified once, the patient is positioned, and then the cylindrical robotic arm is inserted under automatic mode.

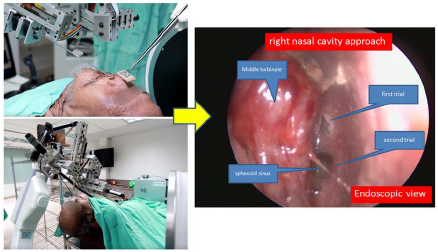

The endoscope, suction, and dissectors are then packed into the working channel, which then assembles into the cylindrical robotic arm to reach the deepest point of the nose. This action is followed by automatic identification of the opening of the sphenoid sinus under the navigation system. Once the dissection is completed, breaking the compressible of vomer opens the sphenoid sinus, which allows targeting the sphenoid sinus. The overall measurement between the orifice and the incision site to the vomer is calculated under the navigation system. The robotic arm in the operative field is controlled in the teleoperation control mode to operate on the trajectory under navigation system. For the safety reason, the virtual fixture and the image based guidance limit the boundary of the operative field. Once the neurosurgeon decides to finish the operation, bleeding flow is evaluated, and the instruments are then positioned safely away from the patient. Surgical assistants complete the intranasal packing, and the step concludes the operation.

5.1. The Brighter Side of the Coin

Neurosurgical Robotic technology is in demand and blooming. From the out- line made above it is now clear that robot-assisted neurosurgical operations have advantages in the overall surgical procedures. This includes but is not limited to the catheter guidance, global navigation, and the intraoperative imaging. The booming technology allows increased safety not only to the patients but also to the neurosurgeons. Also, it offers augmented operative control and consistency in action to the neurosurgeons. Robotic engineering in neurosurgical procedure has benefits in both ends: at the patient end, it incorporates force measurements and offers a real-time response that helps in preventing vessel puncture and damage to delicate structures during the operation, while on the other hand it benefits surgeons and offers to work remotely while staying away from the radiation sources. This engineering also provides improved stability in remedial actions and greater freedom of motion. Because of the enhanced surgical precision and resistance to fatigue, robotic technologies provide a platform with improved ability to minimize incisions and surgical errors in the brain and spinal surgery.

5.2. The Darker Side of the Coin

The substitution or addition of robots into neurosurgical practice comes with potential complications, as the brain is delicate. Also, the entire manufacturing process (research and development cost and post-manufacture maintenance) is cost-effective and time-consuming. To achieve this ambitious goal a widespread incorporation is required along with a decent investment overall. Another important consideration while thinking of surgical robots is the disruption of on- going workflow. Introduction of robotic technology has the potential to change the overall dynamic of the existing operating room and adequate flow. This is particularly not feasible during emergency situations. When we think of robotic assistance surgical procedures, it involves a month’s extended training of both surgeons and surgical support staff on its usage. This not only requires a significant amount of time but also requires a steep learning curve and frequent practice for the refinement of surgical skills of the staff. As mentioned above, the surgical robots offer to work remotely while staying away from the radiation sources. However, on its flip side, it is time efficient especially during the transition to open surgery. This has a potential for deleterious post-surgical impact on the patient.

5.3. Future Perspectives

Robotic applications to neurosurgery are still in their early stage and need more work to get into the flow. With time, as the overall engineering process (design, development, and test) improves, till that several relevant factors must be considered as discussed above before executing the machine. It is very crucial to have a balance between surgeon mediated operational control and robotic autonomy. This is particularly important for the overall safety, utilization, and adaptation to the changing surgical conditions inside the operative room. There is no doubt that an efficient robotic system offers an increased precision in the surgical procedure, but at the same time, they lack the factors necessary for the crucial surgical decisions such as training, experience, and human judgment. Regardless, adaptation to the neurosurgical robotic technology for the neurosurgical interventions displays the most promise for increasing clinical implementation. Overall, we believe that adaption to surgical robots into real neurosurgical practice will take it to the next level.
