Review: Ca_v2.3 R-type Voltage-Gated Ca²⁺ Channels - Functional Implications in Convulsive and Non-convulsive Seizure Activity

Ca²⁺ CHANNELS IN ICTOGENESIS AND EPILEPTOGENESIS

Under physiological conditions, Ca²⁺ influx into functional neurons is organized in a complex fashion including amplitude, frequency and space as the spatiotemporally integrated free cytosolic Ca²⁺ concentration encodes specific information [72]. In general, cytosolic Ca²⁺ increase is mediated via release from intracellular Ca²⁺ stores, such as the endoplasmatic and sarcoplasmatic reticulum, via Na⁺/Ca²⁺ exchanger, VGCCs and an armamentarium of other, often less-specific voltage- and ligand gated cation channels. VGCCs effectively couple complex neural activation patterns to cytosolic Ca²⁺ influx. Until internal Ca²⁺buffering procedures restore the resting intracellular Ca²⁺ levels [73, 74], the cytosolic Ca²⁺ concentration triggers crucial cellular functions, e.g. channel modulation, release of neurotransmitters and gene transcription. The Ca²⁺ influx via VGCCs is supposed to be of central relevance in hyperexcitability and excitotoxicity mediated neurodegeneration. For example, the so called Ca²⁺ hypothesis of epileptogenesis proposes that altered cytosolic Ca²⁺ levels may play a critical role in ictogenesis and epileptogenesis [75-78]. Both HVA and LVA Ca²⁺ channels are predominant mediators of internal Ca²⁺ elevation during most epileptiform activity [75, 79]. In hippocampal neurons it has been reported that the density of Ca²⁺ current was up-regulated during ictogenesis / epileptogenesis [80] and inhibition of VGCCs substantially depressed epileptiform activity [81, 82]. On the cellular electrophysiological level, Ca²⁺ channels were proven to be of central importance in mediating potential ictiform / epileptiform activity, such as afterdepolarization (ADP), plateau potentials (PP) and exacerbation of low-threshold Ca²⁺ spikes (LTCS) / rebound burst firing thus mediating seizure initiation, propagation and kindling [34, 83-86]. In addition, VGCCs exert major effects in excitotoxicity and neurodegeneration contributing to the devastating pathophysiology of human neuronal diseases associated with neurodegeneration [87-89]. Therefore, pharmacological modulation of VGCCs is a promising approach in functional interference with seizure activity, excitotoxicity and neurodegeneration [90-96]. As outlined below, many studies regarding the involvement of VGCCs in ictogenesis and epileptogenesis were carried out on HVA Ca_v2.1 and LVA Ca_v3 type Ca²⁺ channels. However, within the last years, a specific focus has been on the unexpected role of Ca_v2.3 R-type VGCCs in the field of epilepsy.

WHAT MAKES Ca_v2.3 R-TYPE Ca²⁺ CHANNELS SPECIAL?

The Ca_v2.3 R-type Ca²⁺ channel exhibits a complex histological and cellular distribution pattern with Ca_v2.3 being expressed in the peripheral and central nervous system (CNS), the endocrine [97, 98], cardiovascular [99-101], reproductive [102-105], and gastrointestinal system [106]. Additionally, Ca_v2.3 is of central relevance in the developing lung [107] and sensing organs such as the inner ear and organ of Corti [108]. In the last 15 years researchers have gained tremendous insight into the functional role of Ca_v2.3 Ca²⁺ channels based on the generation of Ca_v2.3 deficient mice. Within the CNS, Ca_v2.3 VGCCs are involved in presynaptic / postsynaptic plasticity and neurotransmitter release [65, 66]. Additionally, Ca_v2.3 Ca²⁺ channels were shown to be engaged in the control of pain behavior [109], the physiology of fear [110] and myelinogenesis [111]. Interestingly, Ca_v2.3 VGCCs are also involved in the semaphorin 3A mediated conversion of axons to dendrites and the control of neuronal identity during nervous system development [112]. Furthermore, Ca_v2.3 Ca²⁺ channels seem to exhibit a protective function in ischemic neuronal injury [113] and contribute to vasospasms following subarachnoid hemorrage in humans [114]. Ca_v2.3 R-type VGCCs were also thought to play a crucial role in mediating analgesic opioid effects and underlying pain pathways. Although it remains unknown to a large extend whether single-nucleotide polymorphisms of the human CACNA1E gene encoding Ca_v2.3 VGCCs affect the analgesic effects of opioids, there is increasing evidence of a link between CACNA1E gene polymorphisms and fentanyl sensitivity [115]. Besides Ca_v1.2, the Ca_v2.3 VGCC is also expressed in colonic primary sensory neurons and was reported to be of major importance in visceral inflammatory hyperalgesia [116]. Inhibition of Ca_v2.3 VGCCs by eugenol was also shown to contribute to its analgesic effect [117]. The expression of Ca_v2.3e as the main R-type VGCC isoform in nociceptive DRG neurons also points to a potential target for pain treatment, e.g. in the trigeminal and spinal cord system [118, 119]. Furthermore, Ca_v2.3 Ca²⁺ channels were detected in small to medium muscle afferent neurons revealing the following expression pattern: Ca_v2.2 > Ca_v2.1 ≥ Ca_v2.3 > Ca_v1.2 channels [120]. Notably, Ca_v2.3 VGCC are dominantly expressed presynaptically, e.g. in mossy fibers of the hippocampus [121] and the pallidal globe [122], besides Ca_v2.1 [123] and Ca_v2.2 [124] and it is also expressed at the neuromuscular junction [125]. At the presynaptic site, a minor fraction of Ca_v2.3 VGCCs is are localized to the active zone of the vesicle fusion machinery and thus functionally contributes to neurotransmission [123]. A dominant fraction however, is localized more peripheral in the synapse responsible for synaptic plasticity, e.g. long-term potentiation (LTP) [66]. In addition, it should be noted that Ca_v2.3 R-type VGCCs are homogenously expressed on the cell soma and the dendritic arbor. The dendritic expression pattern is highly complex and only present in certain CNS nuclei and specific cell types, such as CA1 neurons. The highly organized spatial distribution pattern of Ca_v2.3 Ca²⁺ channels with predominant expression in the proximal or distal dendrites clearly differs from other HVA VGCCs [126]. Functionally, Ca_v2.3 was reported to underlie the generation of Ca²⁺-dependent APs. The latter are conducted along the ramified dendritic arbor which serves an important entry site of Ca²⁺ and crucial factor in neural electrogenesis [127]. This characteristic somatatodendritic function of Ca_v2.3 VGCCs is likely to be involved in a number of characteristic ictiform / epileptiform electrical phenomena. Ca_v2.3 R-type Ca²⁺ channels were considered to be unique as they turned out to be resistant to most Ca²⁺ channel blockers. In 1998 however, the spider peptide toxin SNX-482, derived from the venom of the tarantula Hysterocrates gigas (homologous to the spider peptides grammatoxin S1A and hanatoxin), was demonstrated to be a selective Ca_v2.3 Ca²⁺ channel antagonist at low nanomolar concentrations (IC₅₀ = 15-30 nM) [128]. Recently however it turned out that SNX-482 also dramatically reduces A-type K⁺ currents in mouse dopaminergic neurons from the substantia nigra pars compacta. Patch-clamp studies on K_v4.3 stably transfected HEK293 cells revealed an IC₅₀ < 3nM which indicates a substantially higher potency than for SNX-482 inhibition of Ca_v2.3 Ca²⁺ channels [129]. Thus, caution has to be exercised when interpreting SNX-482 antagonistic effects on cells and neural circuits where these channels are actually expressed. Ca_v2.3 blocking effects were also reported for DW 13.3, the Phoneutria (Ctenus) nigriventer (Brazil armed spider) toxin ω-ctenitoxin-Pn2a including ω-PnTx3-3, ω-PnTx3-6 and ω-phonetoxin IIA [20]. In addition, Ca_v2.3 Ca²⁺ channels exhibit high sensitivity to divalent heavy metal ion such as Ni²⁺ (IC₅₀ = 27 μM), a property that they share with Ca_v3.2 Ca²⁺ T-type channels (IC₅₀ = 5-10 μm [130],). Furthermore, in vitro dose-concentration studies using the HEK 293 heterologous expression system and calibrated heavy metal ion concentrations revealed that Ca_v2.3 is a most sensitive target of Zn²⁺ and Cu²⁺ ions with IC₅₀ values of 1.3 ± 0.2 μM and IC₅₀ = 18.2 ± 3.7 nM, respectively, using voltage steps to -20 mV representative for effects on activation gating. In the same setting IC₅₀ values of 8.1 ± 1.4 μM for Zn²⁺ and 269 ± 101 nM for Cu²⁺ representative for action on conductance with voltage steps to +20 mV were obtained [131]. This clearly differs from other ion channels and receptors, e.g. NMDAR (IC₅₀ = 270 nM) and Ca_v3.2 (IC₅₀ = 900 nM) [132, 133]. Abolishing the effects on potential binding sites of divalent heavy metal ions by chelation or by substitution of key amino acid residues in the IS1–IS2 (H111) and IS3–IS4 (H179 and H183) loops substantially enhanced Ca_v2.3 mediated Ca²⁺ influx. This is mediated by a shift in the voltage-dependence of activation towards more negative membrane potentials [131]. The authors further demonstrated that Cu²⁺ modulates the voltage dependence of Ca_v2.3 Ca²⁺ channels by affecting gating charge movements. The presence of Cu²⁺ ions resulted in a delay in activation gating and a reduction of voltage sensitivity of the channel. It was further shown that neurotransmitters, such as glutamate and glycine can serve as trace metal chelators per se and thus substantially regulate activity of Ca_v2.3 VGCCs by modulating their voltage-dependent gating. Interestingly, glutamate substantially potentiated the activity of Ca_v2.3 Ca²⁺ channels at hyperpolarized potentials by shifting their voltage-dependent activation curve towards more negative voltages. Most importantly, the glutamate effect on Ca_v2.3 Ca²⁺ channels was clearly based on the chelating effect and mechanistically distinct from the activation of intracellular signal transduction cascades [134]. Glutamate effects on Ca_v2.3 are exerted from the extracellular space and although the trace metal binding character has been documented before [135] it was not considered to be physiologically relevant until now. Importantly, it has never been mentioned before that trace amounts of divalent heavy metals that often contaminate external solutions [130, 136] can exert tonic antagonistic effects on Ca_v2.3 voltage-dependent gating. Due to the observed shifts in IV-curves and changes in current kinetics in the presence of various Zn²⁺ and Cu²⁺ concentrations, Ca_v2.3 VGCC turned out to be mid-voltage activated in a Zn²⁺ and Cu²⁺ low/free environment. It has been estimated that an average HEPES–TEA solution contains about 50 nM Cu²⁺, which can result in a 17 mV negative shift in the Ca_v2.3 Ca²⁺ activation curve. In addition, trace metal chelation also enhanced Ca_v2.3 Ca²⁺ current inactivation kinetics [131]. These findings are likely to have a severe impact on our view on Ca_v2.3 VGCCs and require a thorough re-assessment of previously reported electrophysiological studies on Ca_v2.3 VGCCs. Additionally, they demonstrate that basic electrophysiological properties of VGCCs can be modulated by local changes in environmental cell conditions and that a plethora of new (patho) for the Ca_v2.3 VGCC entity (Fig. 2). It should further be noted that extracellular acidification can decrease Ca²⁺ current amplitude and results in a depolarizing shift in the activation potential (V_a) of VGCCs. These effects hold true for all VGCC including Ca_v2.3, but differences occur between individual VGCC entities and the underlying molecular mechanisms remain unknown. Alterations of Ca²⁺ current amplitude effectuated by extracellular acidification or alkalinisation were shown to be of higher importance for Ca_v2.3 R type VGCCs than for Ca_v2.1 P/Q-type channels for example [137].

MODULATION OF Ca_v2.3 VGCCS VIA DIFFERENT RECEPTORS AND SIGNALING CASCADES

A number of Ca_v2.3 splice variants have been described [138] and this diversity is likely to be potentiated by co-assembly with different auxiliary subunits such as α₂δ, β, and γ. The Ca_v2.3 VGCC is modulated biochemically by interconversion, i.e. phosphorylation and dephosphorylation. These two processes are of central relevance as they can alter fundamental electrophysiological properties of the channel and are related to the induction and perseveration of epileptiform burst activity in neurons [139] as outlined below. Interestingly, Ca_v2.3 VGCCs are automodulated in a bidirectional manner depending on the Ca²⁺ influx via Ca_v2.3 R-type Ca²⁺ channels. If cytosolic Ca²⁺ concentrations are low, Ca_v2.3 activation via protein kinase C (PKC) slows down the inactivation kinetics and enhances recovery from short-term inactivation [140, 141]. This mechanism represents a positive feedback based on the presence of exon 19 that represents an arginine rich insert 1 in the cytosolic II–III loop [138]. In consequence, Ca_v2.3e R-type Ca²⁺ channels lacking exon 19 encoded insert 1, exhibit only residual phorbol ester mediated stimulation which is however still significant. This view is supported by the observation that coexpression of PKC_α with Ca_v2.3e results in similar kinetics of inactivation and recovery as obtained for the full length II–III loop splice variant Ca_v2.3d. These findings suggest that the expression pattern of Ca_v2.3 splice variants in different brain regions is of significant relevance for neuronal mechanisms underlying neuroprotection, icto-/epileptogenesis and seizure propagation [94]. Importantly, a positive feedback mechanism by Ca²⁺ influx was also reported for L-type Ca²⁺ channels and is mediated through Ca²⁺/calmodulin kinase II [142]. At elevated cytosolic Ca²⁺ concentrations however, a prominent Ca²⁺-dependent inactivation renders the channel activity to further increase [143]. PKC-mediated protein phosphorylation is of major physiological relevance, mediating intracellular messengers and hormonal effects. VGCCs serve as effectors in numerous regulatory neurotransmitter and hormonal pathways initiated by G-proteins. This G-protein mediated regulation of VGCCs can either be indirect via second messengers and/or protein kinases or direct via physical interaction between G-protein subunits and the Ca_v α₁-subunit. Functional studies elicited that G-protein interaction reversibly inhibits neuronal non-L type Ca²⁺-channels. Peak current amplitude is reduced and activation kinetics is slowed. The effects of the hetereotrimeric G-proteins on VGCC are well described for the G_βγ dimer [144, 145], whereas the role of G_α is yet not well understood. There is strong evidence that G_βγ directly interacts with the I–II linker of the Ca_v α₁-subunit [146, 147]. Furthermore, the N-terminus of Ca_v2 α₁ subunits also seems to be involved in G-protein coupled modulation [148] including Ca_v2.3. The G_βγ interaction site within the I–II linker partially overlaps the AID (α₁-interacting domain) where β subunits bind. This observation suggests a physical competition between the agonistic β-subunits [148, 149] and the antagonistic effects of G_βγ [150]. Interestingly, it turned out that G_βγ exhibits inhibitory effects on LVA Ca_v3 T-type Ca²⁺-channels via interaction with the II–III-loop [151]. There are further hints of a sophisticated interdependence between G-protein pathways and PKC as activation of PKC antagonizes adjacent receptor-mediated G-protein inhibition of VGCC [147, 152]. Accumulation of internal Ca²⁺ at low concentrations leads to tonic activation of Ca_v2.3d resulting in enhanced responses, i.e. slowed inactivation and accelerated recovery from inactivation [140]. It has been reported by Dietrich et al. [66] that Ca_v2.3 Ca²⁺ channels contribute selectively to the so-called residual internal Ca²⁺ concentration which is essential for various forms of synaptic plasticity, but contributes less to the release of neurotransmitters. However, this residual internal Ca²⁺ can reach concentration of up to 0.5 mM [153, 154] and is capable of facilitating Ca²⁺ currents through Ca_v2.3d channels [140]. A positive feedback mechanism based on PKC activation might later be attenuated by negative feedback involving the N-lobe calmodulin-dependent modulation [143] and therefore help to maintain physiological internal Ca²⁺ concentrations. The PKC mediated modulation is one final step in the muscarinergic signal transduction cascade. It had been described earlier that Ca_v2.3 Ca²⁺ channels when expressed in HEK cells with M₂ muscarinic receptors, exhibit a biphasic modulation [155-157]. Muscarinic inhibition of Ca_v2.3 VGCCs is mediated by G_βγ subunits, whereas stimulation is mediated by pertussis toxin-insensitive G_α subunits [158]. These authors compared the modulation of Ca_v2.3 Ca²⁺ channels by the three G_α/11-coupled muscarinic receptors M₁, M₃ and M₅, revealing that these receptors trigger comparable stimulation of Ca_v2.3 channels. The signaling pathway that mediates stimulation was analyzed for M₁ receptors in detail indicating that muscarinic stimulation of Ca_v2.3 involves signaling by G_α/11, diacylglycerol (DAC), and a Ca²⁺-independent PKC. In contrast to stimulation, the G_βγ mediated magnitude of Ca_v2.3 inhibition depended on the receptor subtype, with M₃ and M₅ receptors producing larger Ca_v2.3 inhibition than M₁ receptors. Interestingly, muscarinic inhibition of Ca_v2.3 Ca²⁺ channels was notably enhanced during pharmacological suppression of PKC, suggesting the presence of cross-talk between G_βγ-mediated inhibition and PKC-mediated stimulation of Ca_v2.3 R-type Ca²⁺ channels similar to what has been described previously for N-type channels. The role of muscarinic modulation of Ca_v2.3 VGCCs in ictogenesis and seizure activity will be discussed below. It should be noted that Ca_v2.3 is also substantially regulated by small GTPase RhoA [159] and it was speculated that this might influence synaptic transmission during brain development and contribute to pathophysiological processes when axon regeneration and growth cone kinetics are impaired [159].

Ca_v2.3 TYPE VGCCS IN CONVULSIVE SEIZURE ACTIVITY

Aberrant burst activity is a typical feature of neuronal epileptiform activity. Each cellular burst is based on a slow, persistent depolarization, the so-called PP [160] which can last up to seconds [161, 162]. A PP is regenerative, spike dependent and is mediated by the summation of depolarizing APs [163, 164]. In addition, internal Ca²⁺ levels attain a plateau that is typically 4200 nM above rest and reached after several seconds of activity. However, the PP generally collapses soon, once the electrical activity has ceased and the membrane repolarizes again [163, 164]. As regards PP termination, it has been suggested that an increase of internal Ca²⁺ and the subsequent activation of a Ca²⁺-dependent K⁺-mediated afterhyperpolarisation (AHP) might account for this phenomenon [165, 166]. Besides, a shift from Ca²⁺-dependent facilitation to Ca²⁺ dependent inactivation of VGCCs with increased internal Ca²⁺ levels might also be involved. Generally, PPs and ADP are common electrophysiological phenomena in different neuronal cell entities in different brain regions such as spinal and brainstem motor neurons, spinal interneurons, dorsal horn neurons, subicular and entorhinal cortical cells, subthalamic nucleus neurons, suprachiasmatic neurons, striatal cholinergic neurons and hippocampal pyramidal cells [167]. Nevertheless, the entire voltage- and ligand-gated ion channel armamentarium underlying PP and ADP generation is still not fully understood. Recent studies more and more suggest that Ca_v2.3 VGCCs are potent players in PP and ADP generation thus serving an important role in ictogensis [168-175].

Importantly, one has to consider that these data were recorded from various tissue preparations from different species and that dihydropyridines involved in these studies exert complex action on VGCCs. Experimental conditions, such as neuronal membrane potential or penetration depth of various VGCC blockers in CNS slices can severely modulate electrophysiological results [176-178].

Various neurological and cardiovascular studies have suggested that Ca_v1.3 could mediate both a low-threshold and low-dihydropyridine sensitive L-type Ca²⁺ current [12, 15]. In consequence, Ca_v1.3 was speculated to be involved in PP generation in different neuronal cell types. Whereas the electrophysiological behavior of LVA Ca_v1.3 Ca²⁺ channels has been described recently [12, 14], Ca_v2.3 had already been known to exhibit low- to mid-voltage activated activity based on both activation and steady-state inactivation kinetics prominent at relatively negative membrane potentials [99, 167, 179-183]. In addition, Ca_v2.3 R-type Ca²⁺ channels were shown to contribute to sustained PPs and ADPs in hippocampal CA1 neurons with the latter known to enhance neural excitability and epileptogenicity [85, 184]. Studies by Fraser and MacVicar [185] and Fraser et al. [186] demonstrated that carbachol mediated cholinergic stimulation of CA1 neurons causes slow ADP and long lasting PP both of which resemble epileptiform activity. In general, activation of the cholinergic system is a well-known approach to induce limbic seizures both in vitro and in vivo [187-190]. Importantly, PPs are important electrophysiological phenomena in ictogenesis mediated by Ca²⁺ influx through VGCCs. They are modulated upon muscarinic receptor activation and mediate activation of guanylate cyclase activity and subsequent increase in cGMP [191] (Fig. 3). Ca_v2.3 R-type VGCCs were proven to be responsible for Ca²⁺ influx in dendritic spines, e.g. of CA1 neurons [192] and it was further depicted that a reduction of R-type Ca²⁺ current reduces the accumulation of postsynaptic [Ca²⁺]_i, particularly following recurrent synaptic activation [193, 194]. Notably, stimulation of metabotropic muscarinic receptors via carbachol for example results in inhibition of L-, N-, and P/Q-type VGCCs [195-197]. In contrast, R-type Ca²⁺ current is significantly enhanced [198-200]. Topiramate, an AED drug that was shown to block carbachol-induced PPs in subicular bursting cells [201] was used by Kuzmiski et al. [85] to directly prove that topiramate can dampen the generation of PPs by inhibiting R-type VGCCs. Pharmacodynamically, topiramate has a multi-target character interacting with, e.g. voltage-gated sodium channels, VGCCs and AMPA/kainite receptors or GABA(A) receptors [85, 202]. Kuzmiski et al. [85] utilized Ca_v2.3 expressing tsA-201 cells that were co-transfected with β_1b and α₂δ auxiliary subunits to demonstrate that topiramate can block Ca_v2.3 mediated Ca²⁺ currents at therapeutically relevant concentrations. Their studies revealed an IC₅₀ of 50.9 µM and complex alterations in electrophysiological characteristics including a shift of the steady-state inactivation curve to more negative potentials. The Ca²⁺ spikes that were provoked in this study were transient and high-threshold activated. Following application of TTX and a cocktail of VGCC blockers (i.a. nifedipine 10 μM) to eliminate other current components, the remaining Ca²⁺ spike was based on R-type mediated Ca²⁺ current. The latter was increased upon carbachol administration concomitant to an enhanced spike frequency and decreased threshold of Ca_v2.3-mediated spiking. As expected, topiramate significantly reduced the R-type Ca²⁺ spike amplitude. Kuzmiski et al. [85] did not report on experiments to block R-type Ca²⁺ currents using SNX-482 [128] which serves as a rather selective blocker of Ca_v2.3 R-type channels. However, as outlined above the Ca_v2.3 Ca²⁺ channel selectivity of SNX-482 has recently been substantially challenged [129]. Ca_v2.3 Ca²⁺ channels were reported to contribute at around 80% to R-type Ca²⁺ current in CA1 neurons. Furthermore, the R-type component turned out to be sensitive to low Ni²⁺ concentrations (50 μM). Taking into account that 10 μM nifedipine can effectively block Ca_v2.3 VGCCs [99, 180] one might speculate that a realistic Ca_v2.3-mediated topiramate effect on carbachol-enhanced Ca²⁺ spiking is even more prominent. In the past, detailed studies were carried out to define the signal transduction cascade between muscarinic receptors and Ca_v2.3 VGCCs. Melliti et al. [155] and Bannister et al. [158] provided detailed insight how Ca_v2.3 VGCCs are modulated upon M₁, M₃ and M₅ muscarinergic receptor stimulation. Importantly, all three muscarinic receptors can exert complex effects on Ca_v2.3 VGCCs. Whereas a pertussis toxin-insensitive Gα_q/11 subunit, PLCβ, DAG and a Ca²⁺ independent PKC signal transduction mechanism mediates stimulation of Ca_v2.3, the G_βγ subunits exert inhibitory action on Ca_v2.3 VGCCs [203]. Moreover, M₁/M₃ muscarinic receptor activation was demonstrated to augment R-type, but not LVA T-type Ca²⁺ currents in rat CA1 pyramidal neurons following selective blockage of N-, P/Q-, and L-type Ca²⁺ currents [84]. Hippocampal pyramidal neurons are known to highly express postsynaptic M₁ and M₃ receptors [204, 205] which are Gα_q/11 coupled. Activation of M₁/M₃ and attached G-proteins results in synthesis of DAG and IP3 following PLC activation. DAG can activate Ca²⁺-independent group II PKCs, most likely PKCδ [84]. This findings goes together with the observation that R-type Ca²⁺ currents are inhibited upon muscarinic receptor stimulation in CA1 neurons once PKC is inhibited. This phenomenon is due to the activation of pertussis toxin-sensitive G-protein-coupled M₂/M₄ receptors as well as G_βγ subunits [157, 158]. The hippocampal ictogenic potency of Ca_v2.3 VGCCs is also confirmed by the observation that mice lacking the M₁ receptor display reduced seizure susceptibility following pilocarpine adminstration [206]. One should consider that etiopathogenetic mechanisms of ictogenesis and/or epileptogenesis can also include other voltage-dependent Ca²⁺ conductance as well [207]. During early stages of epileptogensis, Hendriksen et al. [208] observed a significant increase in Ca_v2.1, Ca_v1.3- and particularly Ca_v2.3 α₁ mRNA levels in the hippocampal compared to control animals in an electrical stimulation model [208].

Within the last decade there has been an increasing number of reports that directly link VGCCs to specific epilepsy entities in humans as well. Indeed, a number of mutations within the ion-conducting Ca_vα₁ subunits and the auxiliary subunits (β, α₂δ, and γ) of VGCCs were shown to be involved in convulsive and non-convulsive seizure activities in humans. These include i.a. childhood absence epilepsy (CAE) or juvenile myoclonus epilepsy (JME). Mutations in the HVA Ca_v2.1 VGCC for example were detected in patients suffering from absence epilepsy, episodic ataxia type 2 (EA2), and spinocerebellar ataxia type 6 (SCA6). LVA T-type Ca²⁺ channels such as Ca_v3.2, were proven to be important in the etiology of CAE. In addition, they are important targets for a number of AEDs, e.g., suxinimides, lamotrigine (LTG) and zonisamide (ZNS). Although Ca_v2.3 R-type VGCCs are highly expressed in the central nervous system, Ca_v2.3 related epilepsy entities have rarely been reported. In one study, mutations in EFHC1, a C terminal interaction partner of Ca_v2.3 VGCCs, were shown to cause JME in humans. EFHC1 is known to induce neuronal apoptosis by functional interdependence with Ca_v2.3 and related mutations in EFHC1 were shown to disrupt C-terminal binding. Interestingly, the lack of apoptosis causes increased cell density and hyperexcitable neural circuits in affected patients. More in vivo data on Ca_v2.3 VGCCs in epileptogensis are available on the preclinical level. Electroencephalographic characterization of Ca_v2.3 deficient mice exhibited no indications of spontaneous epileptiform graphoelements. However, seizure susceptibility testing proved that Ca_v2.3 VGCCs can contribute to seizure initiation, propagation, termination, and kindling [92, 139, 209]. Pentylenetetrazol (PTZ)-seizure susceptibility was reduced and seizure architecture exhibited severe alterations in Ca_v2.3^-/- mice compared with control mice, supporting the proconvulsive action of Ca_v2.3 VGCC [94, 96]. Similar findings were also obtained in Ca_v2.3 deficient mice following kainic acid (KA) and N-methyl-D-aspartate (NMDA) administration [95]. It turned out that Ca_v2.3^-/- mice are also less susceptible to hippocampal seizures compared to control animals and that Ca_v2.3 Ca²⁺ channels are not only involved in hippocampal ictogenesis but also complex rhythm generation in the septohippocampal network [210]. It was shown that Ca_v2.3 VGCCs contribute to the genesis of atropine-sensitive type II. Urethane-induced atropine-sensitive type II theta oscillations are induced by muscarinic signaling via Gα_q/11, PLCβ_1/4, InsP₃, DAG and PKC (Fig. 3) [210]. Unlike PLC β1 deletion, ablation of Ca_v2.3 does not result in a total abolishment of type II theta oscillations. However, the temporal characteristics of theta distribution, i.e. theta architecture was significantly altered upon Ca_v2.3 deletion [210]. Thus, Ca_v2.3 VGCC are also of tremendous in relevance septohippocampal synchronization associated with theta oscillation [210].

Ca_v2.3 VGCCS IN NON-CONVULSIVE SEIZURE ACTIVITY

Behaviorally, typical absence epilepsy is the prototype of non-convulsive seizure activity. It is characterized by a sudden onset and termination of paroxysmal loss of consciousness that is accompanied by bilateral synchronous spike-wave discharges (SWD). The frequency of these SWD turned out to be species-specific [211]. It has been shown several years ago that the TC circuitry, particularly the contribution of the ventrobasal thalamus and the reticular thalamic nucleus (RTN) are functionally involved in the initiation and propagation of absence seizures [212]. In addition, also extrathalamocortical structures, e.g. the reticular formation, the pedunculopontine tegmental nucleus, the laterodorsal tegmental nucleus, the basal nucleus of Meynert, the raphe nuclei, the locus coeruleus and cerebellar structures are functionally connected to the TC circuitry. Interestingly, brain structures like hippocampus or cerebellum that are classically not known to be involved in the generation of absence SWDs in fact also participate in the development of the absence epilepsy phenotype [213]. On the pathophysiological level, TC dysrhythmia is assumed to be the substrate of SWDs. Electrophysiologically, thalamic relay neurons but also others have the unique capability to shift between different functional states, i.e. the tonic mode, the intermediate mode and the burst firing mode. These different modes strongly regulate transmission of external information to the cortex [214]. The tonic firing mode is typical of stages of high vigilance. When ascending activity originating from deeper brain structures decreases, thalamic relay neurons re- and hyperpolarize. They first exhibit the intermediate mode and finally display rebound burst firing. A number of voltage- and ligand-gated channels involved have been characterized including hyperpolarization and cyclic-nucleotide gated, non-specific cation channels (e.g. HCN2, HCN4) and LVA Ca_v3.1-3.3 T-type Ca²⁺ channels that can trigger LTCSs with superimposed bursts of conventional Na⁺/K⁺ APs. Rebound burst firing can be terminated by both voltage- and Ca²⁺- activated current entities, e.g., I_A and I_K(Ca2+). Rebound burst firing in the TC circuitry is characteristic of low vigilance as holds true for slow wave sleep (SWS). Furthermore, reinforced oscillatory activity accompanied with intensive rebound burst firing of RTN and thalamic relay neurons is of central importance in the etiopathogenesis of absence epilepsy. Within the TC network, oscillatory activity is substantially triggered and sustained by the RTN which helps to control information gating and transfer from the periphery over the thalamus to the cortex. The shell-shaped RTN is strategically placed lateral to the ventrobasal thalamic relay nucleus and exerts inhibitory GABAergic activity on RTN cells themselves as well as on thalamic relay neurons [212]. Interestingly, a number of single-mutation mouse models of absence epilepsy have been described most of which related to genetic ablation of VGCCs. This underlines the critical role of VGCCs in absence epileptogenesis. In particular, HVA Ca_v2.1 and Ca_v3 LVA T-type Ca²⁺ channels were proven to be of central relevance in this field. For example, the Ca_v3.1 VGCC knock-out mouse model was reported to display resistance to absence seizures and a lack of burst firing in TC relay neurons [215]. In addition, Ca_v3.1^-/- mice exhibited altered sleep architecture and a clear lack of delta waves [216]. The Ca_v3.1 Ca²⁺ channel is strongly expressed within thalamic relay neurons. Results obtained from Ca_v3.1^-/- mice strongly indicate that other VGCCs including Ca_v2.3 are also of functional relevance within the TC circuitry. In contrast to Ca_v3.1^-/- mice, Ca_v2.1 deficient animals are susceptible to absence epilepsy characterized by typical SWDs and motoric arrest [217]. The ablation of the Ca_v2.1 P/Q-type VGCCs causes progressive ataxia and altered synaptic transmission in Ca_v2.1^-/- transgenic mice. Amazingly, Ca_v3 T-type Ca²⁺ currents were increased in TC relay neurons obtained from these mice [218]. When Ca_v2.1^-/-;Ca_v3.1^-/- double knock-out mice were generated, mice did not exhibit spontaneous SWDs anymore and no T-type Ca²⁺ current in TC relay neurons could be detected [219]. Besides, Ca_v3.1 VGCCs might be involved in movement disorders such as paroxysmal dyskinesia and ataxia [220, 221]. Summing up, enhanced T-type Ca²⁺ currents in various cellular components of the TC network were shown to be a critical phenomenon in absence epileptogenesis although it does not seem to be a must [219]. Clearly, Ca_v3 T- and Ca_v2.1 P/Q-type VGCCs are not the only electrophysiological players within the TC circuitry. Gabaergic interneurons of the cortex and the RTN as well as extrathalamocortical structures were proven to express Ca_v2.3 VGCCs [96, 179, 222-225]. A lot of studies as regards the role of Ca_v2.3 VGCCs in absence epileptogenesis were carried out in Wistar Albino Glaxo rats (WAG/Rij) and Genetic Absence Epilepsy Rats from Strasbourg (GAERS). In the latter, increased T-type Ca²⁺ currents in reticular thalamic neurons have been reported [226] and subsequently also changes in Ca_v3.1 and Ca_v3.2 Ca²⁺ channel expression in related thalamic nuclei, i.e. the adult ventroposterior thalamic nuclei and the RTN, respectively [223]. Importantly, de Borman et al. [222] and Lakaye et al. [213] described a prominent decrease of Ca_v2.3 VGCC in two extrathalamocortical brain structures in GAERS, the brainstem and the cerebellum both of which project to the TC circuitry, capable of modulating its oscillatory activity [227-229]. In addition, the WAG/Rij rat model of absence epilepsy displays altered VGCC expression as well. Development of SWDs in WAG/Rij rats goes together with an enhanced expression of Ca_v2.1 VGCC in the RTN. Interestingly, van de Bovenkamp-Janssen et al. [224, 225] elicited that control rats showed elevated Ca_v2.3 VGCC expression in the RTN from 3 to 6 months of age. In contrast, WAG/Rij rats of the same age clearly lacked this increase in Ca_v2.3 expression concomitant with the first occurrence of SWDs. These observations are further supported pharmacologically. Lamotrigine is known to inhibit Ca_v2.3 VGCCs [230] and effectively suppressed not only SWDs in both GAERS and WAG/Rij rats [211, 231] but also TC burst activity in rat brain slices [232]. Still, the unique electrophysiological features and neuronal implications of Ca_v2.3 VGCC expression within RTN cells, GABAergic interneurons and various extrathalamocortical structures on TC oscillatory action are not yet fully understood. Initial investigation of absence seizure susceptibility in Ca_v2.3^−/− mice elicited that Ca_v2.3 affects TC hyperoscillation and absence seizure architecture. In accordance to reports on the absence-preventive effect of Bay K8644-enhanced HVA Ca²⁺ currents, one might expected that HVA Non-L-type Ca_v2.3 Ca²⁺ channels might support the tonic mode of action [233]. Recently however, Zaman et al. [86, 234] demonstrated in vitro and in vivo that Ca_v2.3 Ca²⁺ channels and a Ca²⁺-activated K⁺ channel, i.e. SK2, can form a functional microdomain that mediates slow afterhyperpolarisations (sAHPs) in RTN neurons following LTCS. Interestingly, Ca_v2.3-mediated Ca²⁺ influx is capable of activating SK channels which results in re- and hyperpolarization of the cell membrane causing repriming of T-type Ca²⁺channels and activation of HCN channels [86]. Thus, Ca_v2.3 Ca²⁺ channels seem to actively promote and sustain rebound burst firing in RTN neurons. Using the in vitro brain slice approach, the application of a hyperpolarizing current triggered a LTCS with typical superimposed Na⁺ bursts in reticular thalamic neurons from Ca_v2.3^−/− mice. Notably, any consecutive oscillatory burst activity was severely dampened and sAHP was clearly reduced. About 51% of HVA Ca²⁺ current in RTN neurons turned out to be sensitive to the tarantula toxin SNX-482 and could thus be attributed to Ca_v2.3 Ca²⁺ channels [86]. Furthermore, Ca_v2.3 mediated Ca²⁺ influx was shown to functionally interact with voltage-insensitive small-conductance Ca²⁺-activated K⁺ channels type 2 (SK2) which are engaged in the generation of Ca²⁺-dependent sAHP. Zaman et al. (2011) argued that T-type Ca²⁺ channels are not sufficient to mediate cytosolic Ca²⁺ levels that can actually trigger sAHP, the latter however is a prerequisite for repriming T-type Ca²⁺ channels and rebound bursting firing. Thus, Ca_v2.3^−/− mice demonstrate impaired RTN oscillatory behavior and reduced absence seizure susceptibility. Electrophysiological data from the RTN of Ca_v2.3^−/− mice clearly demonstrated an impairment of reticular thalamic bursting which was supposed to result in reduced SWD activity triggered by γ-hydroxybutyrate administration. Interestingly, this functional scenario of Ca_v2.3 mediated SK2 activation has previously been described in the CA1 region as part of a functional triad including NMDA-receptors, Ca_v2.3 VGCCs and SK2. Similar to RTN neurons, Ca_v2.3 VGCCs and SK2 channels induce AHPs that are likely to serve as a negative feedback mechanism in regulating synaptic activity and plasticity in dendritic spines in the CA1 region [192, 235-237] as well as in epileptogenicity [238].

Given the cellular electrophysiological findings and absence seizure study results from [86], one might speculate that SWS is reduced in Ca_v2.3^-/- mice. However, we observed an opposite effect [239]. Our sleep study in Ca_v2.3^-/- mice suggested that Ca_v2.3 VGCCs significantly modulate sleep parameters in rodents in a light-dark cycle dependent manner. Major changes were observed for both the quiet and active wake duration, the SWS1 duration and the total number of sleep episodes in Ca_v2.3 deficient mice. Importantly, the wake duration was decreased compared to controls with significant increase in SWS1. Sleep analysis further pointed to an alteration of sleep architecture in Ca_v2.3^−/− mice based on changes in sleep stage transitions. The most severe changes were observed during the dark cycle. Importantly, urethane induced SWS administration clearly supported sleep scoring results from spontaneous 48-h sleep recordings. Interestingly, anesthetic sensitivities to propofol and halothane were shown to be decreased in Ca_v2.3^−/− mice, which might be related to different pharmacodynamic profiles compared to urethane. Joksovic et al. [240] reported that presynaptic Ca_v2.3 R-type VGCCs support inhibitory GABAA transmission in RTN neurons and are inhibited by isoflurane. It is difficult to predict the consequences that an inhibition of Ca_v2.3 Ca²⁺ channels and IPSCs in the RTN might have on TC rhythmicity. It was previously described that Ca_v2.3^−/− mice exhibit a decrease in the duration of suppression episodes in the EEG following isoflurane anesthesia [240] which is in line with data from Zaman et al. [86]. In the last decade, the functional involvement of Ca_v3 T-type VGCCs in mouse sleep architecture has been investigated in detail, finally resulting in the Ca²⁺ channel model of TC rhythmicity. As outlined above, T-type VGCCs are differentially distributed throughout the thalamus. Ca_v3.1 T-type VGCCs are dominantly expressed in thalamic relay cells whereas Ca_v3.2 and Ca_v3.3 VGCCs are localized in RTN neurons. Gene ablation studies on Ca_v3.1^−/− mice showed that lack of Ca_v3.1 mediated Ca²⁺ influx in thalamic relay cells results in lack of burst firing activity due to impaired LTCS activity. However, region specific, i.e., cortical, not thalamic Ca_v3.1 deletion did not result in altered sleep. These findings resulted in a complex model of Ca_v3.1 Ca²⁺ channels in regulating TC rhythmicity and sleep. Based on this model, ablation of Ca_v3.2 and/or Ca_v3.3 might result in a phenotype comparable to that of Ca_v3.1^−/− mice. However, although effects of Ca_v3.3 ablation on sleep spindles have been described, we are still lacking detailed sleep analysis in Ca_v3.2 and Ca_v3.3 knock-out mice. The model might predict that ablation of Ca_v3.2 and Ca_v3.3 results in impaired SWS. However, it was recently reported from a patent application that pharmacological blockade of Ca_v3.2 VGCCs can result in enhanced rather than impaired sleep, the reason of which remains to be determined. Moreover, transition rates and sleep architecture were altered. The latter findings strongly suggest that interpretation of sleep architecture in transgenic mice cannot be limited to the TC network itself, or thalamic nuclei in specific but also has to include extrathalamocortical structures as well (see below).

Like Ca_v3.2 and Ca_v3.3, the Ca_v2.3 R-type Ca²⁺ channels are expressed in the RTN, but not thalamic relay neurons. In addition, Ca_v2.3 transcripts are present in cortical interneurons. Moreover, Ca_v2.3 VGCCs are expressed in a number of extra-thalamocortical structures, such as the mesopontine REM-NREM modulators (the locus coeruleus, the dorsal raphe nuclei, the pedunculopontine, and the laterodorsal tegmental nuclei), the diencephalic sleep onset controllers (hypothalamic nuclei including the ventrolateral/lateral preoptic region and the tuberomammillary basal forebrain), the cerebellum, the basal ganglia and the hippocampus [94, 96]. These structures are known to project to the TC circuitry and substantially modify its activity via different neuromodulators, e.g., noradrenalin, histamine, serotonin (5-HT), and acetylcholine [92, 211, 241]. Other important Ca_v2.3 expressing structures include the suprachiasmatic nucleus involved in the regulation of the circadian rhythm and also sleep architecture [242, 243] and the amygdala which is also involved in sleep regulation. It’s noteworthy that Ca_v2.3 Ca²⁺ channels are of major relevance in the amygdala physiology. Lee et al. [110] intensively studied the molecular and electrophysiological characteristics of R-type Ca²⁺ channels in central amygdala neurons proving that Ca_v2.3 underlies R-type Ca²⁺ currents in these cells. However, the functional consequences of Ca_v2.3 based R-type Ca²⁺ currents in specialized amygdala neurons, i.e. Wake-ON, REM-ON, and NREM-ON Ace neurons remain largely unknown. However, findings from sleep analysis in Ca_v2.3^-/- mice clearly point to the fact that a valid model of TC rhythmicity needs to include input also from extrathalamocortical structures. In conclusion, there is strong evidence that Ca_v2.3 VGCCs play a primary role in SWS, the etiology and pathogenesis of absence epilepsy and SWD generation.

Ca_v2.3 R-TYPE VGCC CHANNEL MODULATION AND ITS CLINICAL CONSEQUENCES

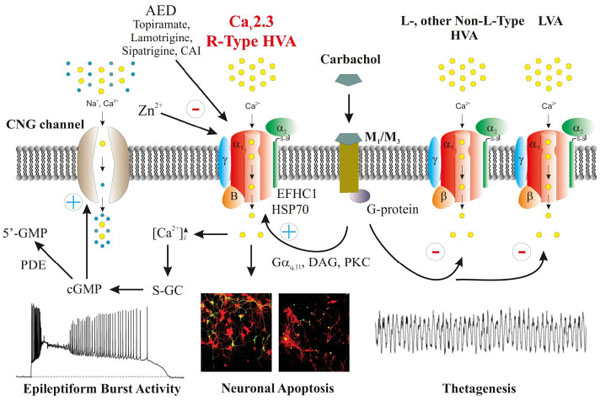

VGCCs are important targets for numerous AEDs [139, 244, 245]. Most AEDs were shown to inhibit HVA or LVA Ca²⁺ channels others than Ca_v2.3 VGCCs. Based on the findings described above, there is striking evidence that Ca_v2.3 VGCCs can serve as targets in convulsive and non-convulsive seizure pharmacotherapy. Lamotrigine (LTG) for example is a multi-target AED for the treatment of typical absence seizures and the Lennox-Gastaut syndrome [246, 247]. Pharmacodynamically, it acts via inhibition of both voltage-gated Na⁺ and Ca²⁺ channels [248]. LTG targets Ca_v2.1 and Ca_v2.2 VGCCs [249, 250], but also Ca_v2.3 R-type and Ca_v3 T-type channels [230]. Interestingly, LTG inhibits R-type Ca²⁺ currents stronger than T-type currents. Thus, Ca_v2.3 Ca²⁺ channels seem to be involved in the anti-absence activity of LTG suggesting an important role of Ca_v2.3 VGCCs in the etiopathogenesis of absence epilepsy. LTG at a concentration of 10 μM is capable of inhibiting Ca_v2.3-α₁ coexpressed with β₃ by 30% when applying therapeutically relevant brain concentrations of 4–40 μM [230]. Contrarily, Ca_v3.1 and Ca_v3.3 T-type Ca²⁺ channels exhibited only minor sensitivity to LTG.

In addition, Lamotrigine (LTG) was shown to dampen transient cytosolic [Ca²⁺] in rat pyramidal neurons. This is of relevance as alterations in intracellular Ca²⁺ homeostasis are known to play an important role in the genesis of epileptiform discharges. Inhibiting transient elevations in neuronal [Ca²⁺]_i by Lamotrigine (LTG) correlates with its anticonvulsant efficacy and could thus prevent neurons from hyperexcitability and excitotoxicity [79]. Notably, sipatrigine or 202W92 can also inhibit Ca_v2.3 VGCCs with IC₅₀ values of 10 μM which is within therapeutically relevant brain concentrations of 20–100 μM for sipatrigine and 56 μM for 202W92. Furthermore, both sipatrigine and 202W92 exhibited neuroprotective effects in various animal models of ischemia [251, 252] and displayed anticonvulsant efficacy in both genetically epilepsy-prone rats and DBA/2 audiogenic mice [230, 253]. Importantly, McNaughton et al. [254] have characterized other potential Ca_v2.3 blockers that might be relevant in antiepileptic treatment, i.e. carbonic anhydrase inhibitors. The latter include for example ethoxyzolamide, acetazolamide and dichlorphenamide. Carbonic anhydrase inhibitors have numerous clinical applications, e.g. induction of diuresis, ocular hypertension relief and treatment of altitude sickness [255, 256]. However, epidemiological approaches also suggest their efficacy in patients suffering from absence epilepsy [255]. Ethoxyzolamide inhibited Ca_v2.3 mediated R-type Ca²⁺ current by 66-74% at 10 μM. On the other hand, dichlorphenamide (10 μM) which is used for treatment of generalized epilepsies resulted in a 24-76% reduction of R-type current [254]. Importantly, topiramate, a standard AED nowadays shares structural similarities with carbonic anhydrase inhibitors and indeed also exerts remaining inhibitory action on carbonic anhydrases. Topiramate had already been reported to inhibit L-type Ca²⁺ currents [257]. Recently however, it was also proven [85, 254] that topiramate severely inhibits Ca_v2.3 Ca²⁺ channels by 68-77% when applied at therapeutically relevant concentrations of 10 μM. Furthermore, Kuzmiski et al. [85] showed that topiramate can block PPs in hippocampal CA1 neurons due its inhibitory action on Ca_v2.3 Ca²⁺ channels. As outlined above, PPs are of significant relevance in promoting epileptiform burst activity. Thus, inhibition of Ca_v2.3 Ca²⁺ channels by topiramate is responsible for a reduction in repetitive neural firing, spontaneous epileptiform burst activity and recurrent seizures [258]. It’s noteworthy that many AEDs, e.g. topiramate or Lamotrigine (LTG) that were proven to block Ca_v2.3 Ca²⁺ channels are multi-target drugs acting on an armamentarium of voltage- and ligand- gated ion channels.

Given the functional involvement of Ca_v2.3 VGCCs in the etiopathogenesis of both convulsive and non-convulsive seizures but also sleep (patho)physiology, future development of highly specific Ca_v2.3 Ca²⁺ channels blockers will be of tremendous pharmacotherapeutic relevance and a benefit for patients.
